Bosch 2way ACS Automotive Connector Breakout Lead

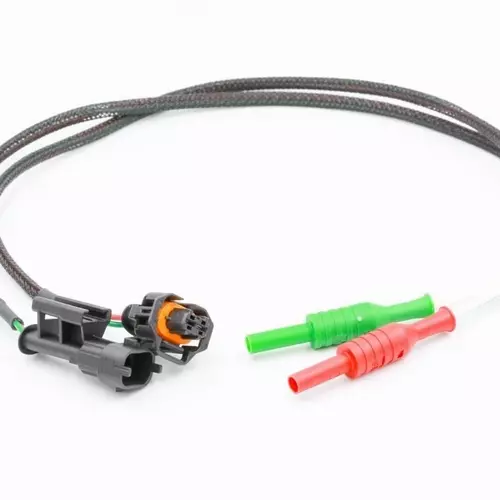

Bosch Connector 2 Way ACS Connector Breakout Lead - Vehicle Diagnostics Connector Part Number: 1928403698/1928404226 This Bosch Connector 2 Way ACS breakout lead is part of our range of automotive connector breakout leads designed to connect to 2 pin Bosch connectors found on sensors, actuators and injectors in numerous vehicles such as: Vauxhall Vivaro 1.9 and 2.0 CDTi Vauxhall Vectra 2.0 CDTi Vauxhall Corsa 1.3 CDTi Vauxhall Combi 1.3 CDTi Vauxhall Astra 1.3 CDTi Renault Traffic 1.9 and 2.0 CDTi Nissan Primaster 1.9 and 2.0 CDTi Citroen Berlingo 1.6HDi & various other models Peugeots and Citroens with 2.0 HDi engines Alfa Romeo - Various diesel models Saab - various diesel models BMW - 12512247471  DAF - 1391484  Ford - 1L2T14A464TA  Cummins - 3164098  Iveco 41118038 Renault - 7703597062 MAN - 81.25475-0152 Volvo - 874368 Peugeot - 96381671 The lead enables automotive technicians to connect to a connector within a vehicle loom and conduct diagnostic voltage and current measurements of various sensors, actuators and components.

The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from;  PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke. The individual wire connections are colour coded for easy identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.  This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Warwick Test Supplies WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and female banana plug Pin 2 - RED wire and female banana plug Pin 3 - BLUE wire and female banana plug Pin 4 - YELLOW wire and female banana plug Pin 5 - WHITE wire and female banana plug Pin 6 - BLACK wire and female banana plug Bosch 2 Way Compatibility The Bosch Connector ACS Compact Series are suitable for Bosch diesel fuel systems and are fitted to a wide variety of vehicles with diesel injectors and control valves. Compatible vehicles; VW, Audi, Citroen, BWW, Peugeot, Renault, Vauxhall and Ford.
