Deutsch 6way DTM Automotive Connector Breakout Lead

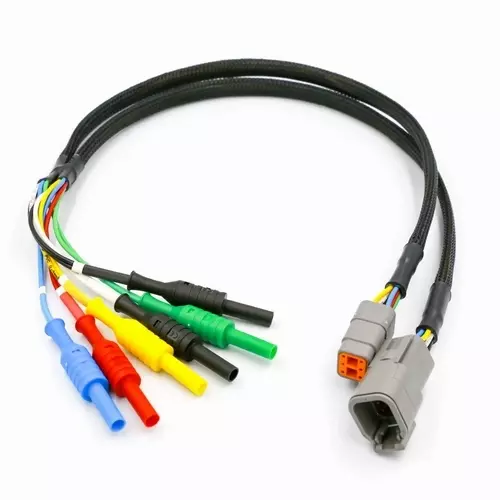

6 Pin Deutsch DTM Automotive Oscilloscope Diagnostics Breakout Lead Connector Part Number: DTM06-6S/DTM04-6P This 6 pin Deutsch Automotive Connector breakout lead is part of our range of automotive connector breakout leads and is designed to connect to Deutsch connectors commonly found on Fuel Dosage Valves using Euro 6 Fuel Filters on commercial vehicles - (HGV trucks). The lead allows technicians to connect to the vehicles connectors and conduct diagnostic voltage and current measurements without the need to back pin or damaging the connector's moisture seal.  The lead includes Deutsch DTM04-6P male and Deutsch DTM06-6S Female automotive connectors on an single harness.   The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based oscilloscopes from;  PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke. The individual wire connections are colour coded for easy identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use.  Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and female banana plug Pin 2 - RED wire and female banana plug Pin 3 - BLUE wire and female banana plug Pin 4 - YELLOW wire and female banana plug Pin 5 - WHITE wire and female banana plug Pin 6 - BLACK wire and female banana plug
