Land Rover Bosch Kompact 4 2way Injector Connector Breakout Lead

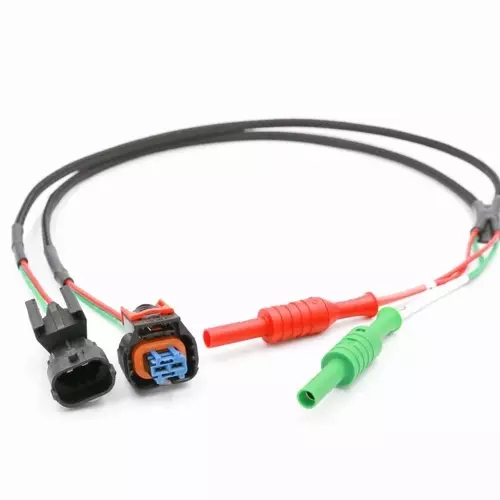

2 Way Bosch Kompact 4, Code 1, CPA Land Rover Injector Connector Breakout Lead - Vehicle Diagnostics Connector Part Number:  1928405521 This 2 Way Injector breakout lead is part of our range of automotive connector breakout leads for Land Rover vehicles.  They are designed to connect to 2 pin connectors found on Bosch engine injectors and some sensors and actuators.  Can be found in numerous vehicles such as: Land Rover Discovery 5 Range Rover Sport Bosch AdBlue injectors: FX23-189E3-AA, FPLA-189E3AB AC ER6NF Bosch 0445116037Injector, AH4Q-9K546-BA, LR054298 Land Rover & Ford Engines  448DT, TD4, TDV8, LR322, L405 Jaguar E-Pace Fiat 11411787 Volkswagen 992972702 Ford & Jaguar FK6T-14A464-CA The lead enables automotive technicians to connect to a connector within a vehicle loom and conduct diagnostic voltage and current measurements or insulation testing of injectors. The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from;  PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.

The individual wire connections are colour coded for easy identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.  This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Warwick Test Supplies WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and female banana plug Pin 2 - RED wire and female banana plug Pin 3 - BLUE wire and female banana plug Pin 4 - YELLOW wire and female banana plug Pin 5 - WHITE wire and female banana plug Pin 6 - BLACK wire and female banana plug
