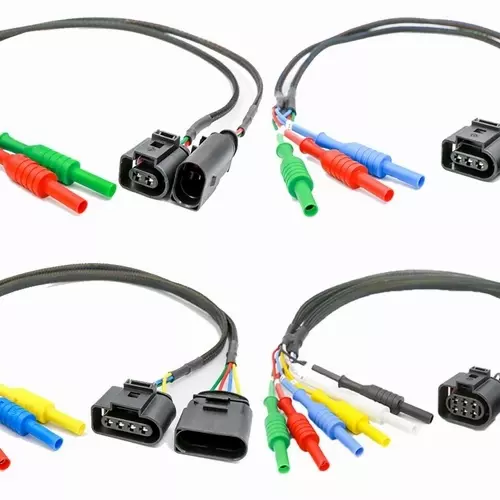

2.8mm Connector Breakout Lead Set For VAG Vehicles

Vehicle Diagnostics Breakout Lead Set - 2.8mm Contacts - For VAG Vehicles 2 pin - 3 pin - 4 pin - 6 pin Breakout Leads for VAG Vehicles The WACB-V282060SET consists of a set of 4 breakout leads utilising 2.8mm VAG connectors.  The breakout leads within this set have been designed to enable a technician to connect quickly and reliably to 2, 3 4 and 6 pin VAG automotive connectors to conduct diagnostics of injectors and various sensors commonly found on VW, Audi and Skoda vehicles. Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.  Each breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.  Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and banana plug Pin 2 - RED wire and banana plug Pin 3 - BLUE wire and banana plug Pin 4 - YELLOW wire and banana plug Pin 5 - WHITE wire and banana plug Pin 6 - BLACK wire and banana plug Set consists of the following breakout leads: 2pin 2.8mm VAG Automotive Connector Breakout Lead WACB-V2820 3pin 2.8mm VAG Automotive Connector Breakout Lead WACB-V2830 4pin 2.8mm VAG Automotive Connector Breakout Lead WACB-V2840 6pin 2.8mm VAG Automotive Connector Breakout Lead WACB-V2860
