Automotive Connector Breakout Lead Set

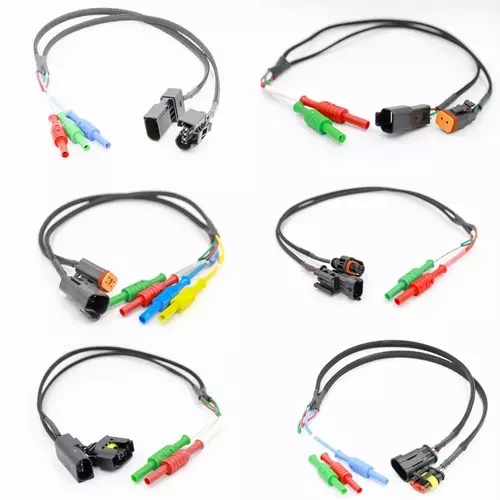

WACB-SET-A Automotive Oscilloscope Diagnostics Breakout Lead Set This Automotive Connector Breakout Lead Set consists of a set of 6 breakout leads that use the most common automotive connectors from Bosch, Deutsch, Kostal and AMP.  The leads allow technicians to connect to a connector within the vehicle loom and conduct diagnostic voltage and current measurements of various sensors, actuators and components.  The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based oscilloscopes from;  PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke. The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.   This set consists of: WACB-100 - Bosch 2 P

in ACS WACB-101 - 3 pin Kostal WACB-102 - 2 pin Deutsch WACB-103 - 4 pin Deutsch WACB-104 - 2 pin Kostal WACB-107 - 3 pin AMP Superseal All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.  This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use.  Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and banana plug Pin 2 - RED wire and banana plug Pin 3 - BLUE wire and banana plug Pin 4 - YELLOW wire and banana plug Pin 5 - WHITE wire and banana plug Pin 6 - BLACK wire and banana plug
