BMW 2 Way Kostal Coding A1 - Injector Breakout Lead

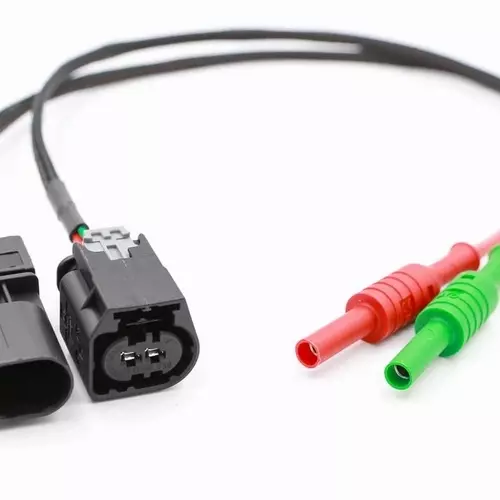

BMW 2 Pin Kostal Automotive Breakout Lead - Coding A1 Interface - Fuel Injector Connector Connector Part Number: 9444021 - Sealed SLK 2.8 - Coding A1 BMW Fuel Injector Connector, compatible across; 1 Series (F20) 2011-18 3 Series (F30) 2011-18 5 Series (G30) 2017-19 X3 (G01) 2018-Present X5 (G05) 2018-Present The Kostal 2 way breakout lead featuring Coding A1 Interface is part of our BMW lead range. The A1 Kostal 2 way connector is found on various BMW Fuel Injectors and this breakout lead provides a fast and effective system to connect and run diagnostic tests on individual injectors. Prevent connector pin damage often caused by back pin probing and perform insulation resistance tests with connection security.  The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from;  PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.

The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and female banana plug Pin 2 - RED wire and female banana plug Connectors vary across models and generations. Connector comparison is recommended to ensure the connector breakout is compatible for the intended test application.
