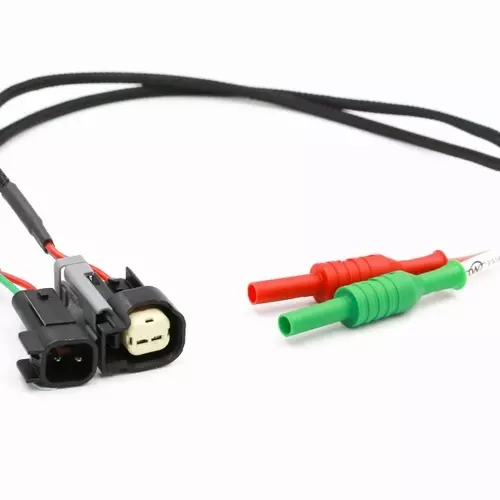

Delphi 2way Metri-Pack 15305086 EV6 Injector Automotive Connector Breakout

Delphi 2way Metri-Pack 150 EV6 Injector Automotive Connector Breakout The 2 Way Delphi EV6 breakout lead has been designed to connect quickly and reliably to 2 way Delphi Metri-Pack 150 series 15305086 automotive connectors commonly found on Bosch EV6 Electronic Fuel Injector systems, Volvo Penta injectors and on Ford ST and LS Gen3 GM engines.  They can be found on Ford, Volvo, Jeep, Dodge and Chevy vehicles.   Can also be used on injectors that use Delphi Metri-Pak GT 150 15419715 connectors. Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.  The WACB-109 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.  Reliable readings start with the point of connection. Ensure your findings are accurate and prevent miss-diagnosis with reliable breakouts that are purpose built for the workshop.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and banana plug Pin 2 - RED wire and banana plug
