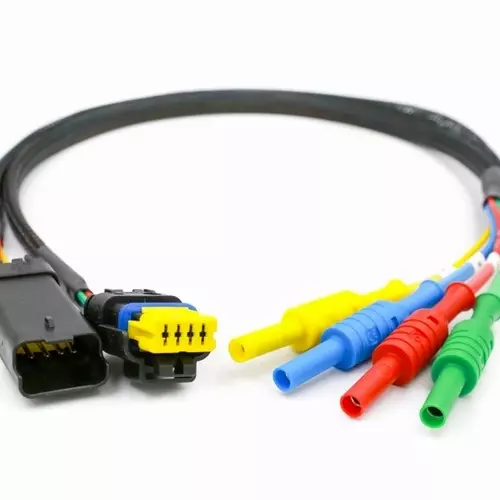

Delphi 4way Sicma FCI Automotive Connector Breakout

WACB-P114 Delphi Sicma FCI 4way - PSA Vehicle Diagnostic Breakout Lead Connector Part Number: 211PC042S4021/211PL042S0049 The 4 Way Delphi Sicma Series FCI breakout lead has been designed to connect quickly and reliably to 4 pin Delphi Sicma Series FCI automotive connectors found on vehicles manufactured by Peugeot and Citroen (PSA Group). The 4 pin sensor is commonly found on fuel pump sensor connectors. This breakout lead is also suitable for Ford vehicles that used PSA engines from 2006 - 2014. Prevent damage to the vehicles' connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with specialised breakout leads.  The WACB-P114 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.  Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and female banana plug Pin 2 - RED wire and female banana plug Pin 3 - BLUE wire and banana plug Pin 4 - YELLOW wire and banana plug
