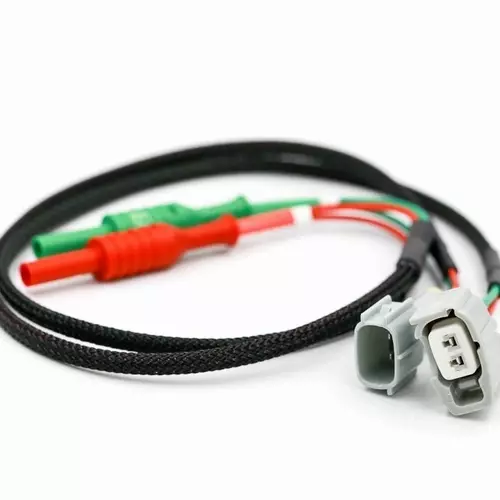

Denso Toyota 2way Injector Connector Breakout

Denso Toyota 2way Injector Connector Breakout The Densoo 2 Way Toyota injector breakout lead has been designed to connect quickly and reliably to 2pin injectors found on various Toyota, Lotus and Lexus vehicles, such as: Connector Part Numbers Female: 2way connector body 6189-0611 Male: 2way connector body 90980-11875 Compatible Vehicles Toyota 1ZZ, 2ZZ and 2GR fuel Injectors Mitsubishi 4D56 Fuel Injectors Toyota Corolla Verso 1.8 Toyota Celica 1.8 Toyota Vista Saloon 1.8 Toyota MR2 III Toyota Avensis 1.8 VVTi Toyota Hilux and Land Cruiser models with 1GR -FE engine Lotus Evora Lotus 2 Eleven 1.8 Lexus RX (Engine - 2GR) Lexus GS Altezza / Lexus IS200 models with 1G-FE engine Vehicles using Toyota injector 90980-11875 Product Description Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.  The WACB-112 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.  Reliable readings start with the point of connection.

Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and banana plug Pin 2 - RED wire and banana plug
