Land Rover 2 way Injector Connector Breakout Lead

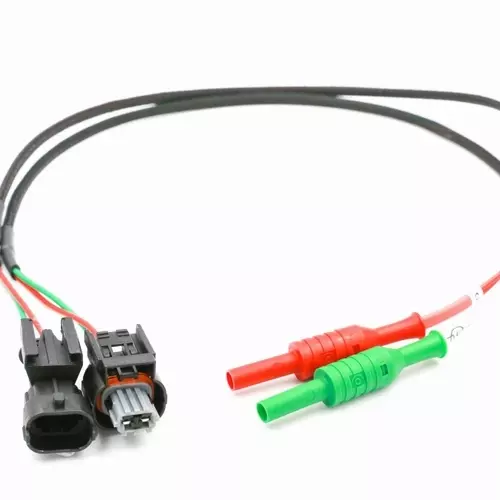

Land Rover Connector (YPC913430) 2 Way Injector Connector Breakout Lead - Vehicle Diagnostics Connector Part Number: YPC 913430 This Land Rover Connector 2 Way Injector breakout lead is part of our range of automotive connector breakout leads.  They are designed to connect to 2 pin connectors found on engine injectors and some sensors and actuators.  Can be found in numerous vehicles such as: Vehicles with L322 RR Injectors Discovery 3 2005 - 2009 Classic, Range Rover 2002 - 2009, Range Rover Sport 2005 - 2009, Range Rover 2010 - 2012, Discovery 4 2010 - 2016, Range Rover Sport 2010 - 2013, Range Rover 2013 >, Range Rover Sport 2014 The lead enables automotive technicians to connect to a connector within a vehicle loom and conduct diagnostic voltage and current measurements or insulation testing of injectors. The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from;  PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.

The individual wire connections are colour coded for easy identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.  This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Warwick Test Supplies WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and female banana plug Pin 2 - RED wire and female banana plug Pin 3 - BLUE wire and female banana plug Pin 4 - YELLOW wire and female banana plug Pin 5 - WHITE wire and female banana plug Pin 6 - BLACK wire and female banana plug
