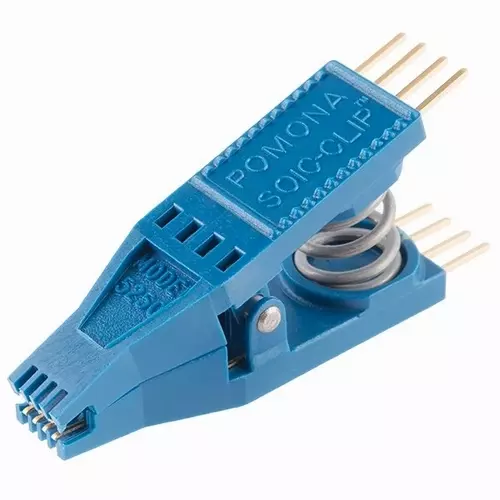

Pomona 5250 8pin SOIC Test Clip

Pomona 5250 8 Pin SOIC Test Clip Designed especially for in-circuit testing on Small Outline Integrated Circuits (SOIC & SOJ). The SOIC Clip test clip assures a positive connection to all chip leads and provides hands-free testing. Specification Upper contacts are .025" sq. pins, spaced at .100". Pins are perfect for sq. pin receptacles, wire-wrap or jumper leads. Gold plated lower contacts assure reliable, noise free connections. Molded barriers between each contact allow connections to be made on live boards without accidental shorting to adjacent chip leads. Fits surface mounted SOIC and SOJ chips with gull wing or “J” leads and body width from .150" to .350" wide. View the datasheet for more information.

Visit the Warwick Test Supplies website for more information on Pomona 5250 8pin SOIC Test Clip

ENQUIRY FORM
