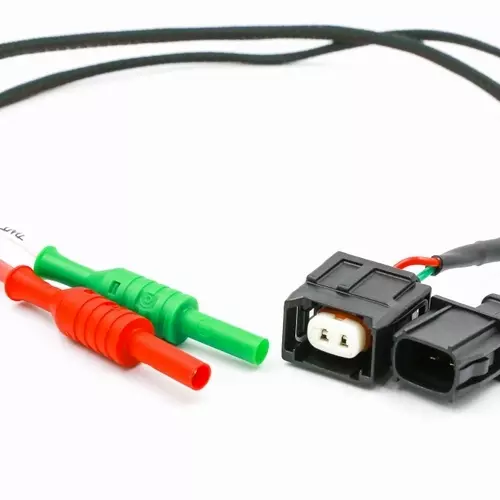

Toyota 90980-12747 2way Injector Connector Breakout

Toyota/ Lexus 90980-12747 2way Injector and Fuel Pump Connector Breakout This 2 Way Toyota injector breakout lead has been designed to connect quickly and reliably to Denso Toyota 2pin common rail diesel injectors and fuel pumps found on various Toyota and Lexus vehicles, such as: Connector Part Numbers Female: 2way connector body 90980-12747 Male: 2way connector body 90980-12747 MALE Compatible Vehicles Numerous Toyota and Lexus vehicles with common rail diesel injectors. Product Description Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.  The WACB-117 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.  Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop.   All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention: Pin 1 - GREEN wire and banana plug Pin 2 - RED wire and banana plug
