WBDCM-4 Bulkhead BNC Diagnostic Cart Mounting Kit

Oscilloscope Bulkhead BNC Diagnostic Cart Mounting Kit Automotive oscilloscopes such as the Picoscope are delicate instruments that are not cheap to replace if damaged. How many close calls have you had balancing the scope on a vehicle, hanging it from the bonnet or snagging its leads pulling the scope or toppling it off a bench or cart? This is where the WBDCM-4 comes to fruition, enabling ultimate protection for your scope.   Designed in collaboration with Jarhead Diagnostics, the WBDCM-4 is a BNC bulkhead mounting kit which allows you to safely store your oscilloscope in a draw or shelf of a diagnostic cart or toolbox protecting it from damage and dirt.  The kit mounts to the front or side of your cart/box and provides BNC connections and patch leads to connect your oscilloscope on the inside and BNC connections on the outside to connect your long leads.  When the long leads are not connected the protective cover is used to cover the BNC connections protecting them from dirt, knocks and damage.

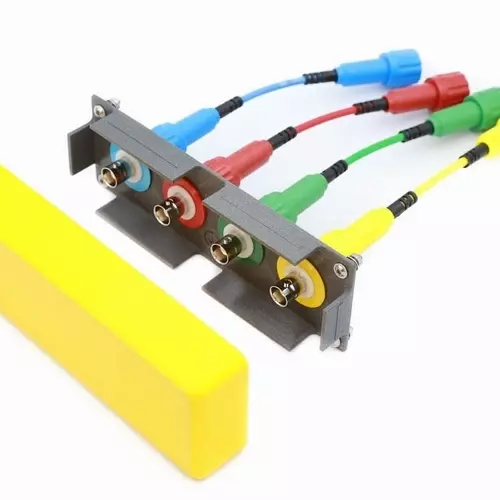

The WBDCM-4 kit consists of: A BNC Bulkhead Plate with BNC connections which is mounted to the diagnostic cart or toolbox using  four M3 socket cap screws; A set of four colour coded BNC patch leads to connect to the inside BNC bulkhead BNC connector and your oscilloscope; A protective cover for the front of the bulkhead plate. Features: BNC Bulkhead Plate easily mounted and secured to a diagnostic cart or toolbox with four M3 socket cap screws.  You will need to drill four M3 and four 13mm holes in the cart/box. BNC bulkhead connectors are insulated from the diagnostic cart. Patch leads use fully shielded 50 Ohm cable and are colour coded to match the input colours of the oscilloscope and OEM leads.  Patch leads use fully insulated IEC 601010 rated BNC connectors. Protective cover gives protection to the BNC connections from dirt and damage when leads are not connected and in use. Can be easily removed and mounted again when its time for a new diagnostic cart. The protective cover is available in different colours to suit your cart and the patch leads are available in different lengths.  Make your selections using the dropdown boxes.  We can also make custom length patch leads if the standard lengths don't suit you, please contact us.   Picoscope Mounted Tiepie Automotive Oscilloscope Mounted. Due to the customisation of this product we manufacture them to order, so expect a short lead time.  Also note that an order can not be cancelled once production has begun and is non refundable.
